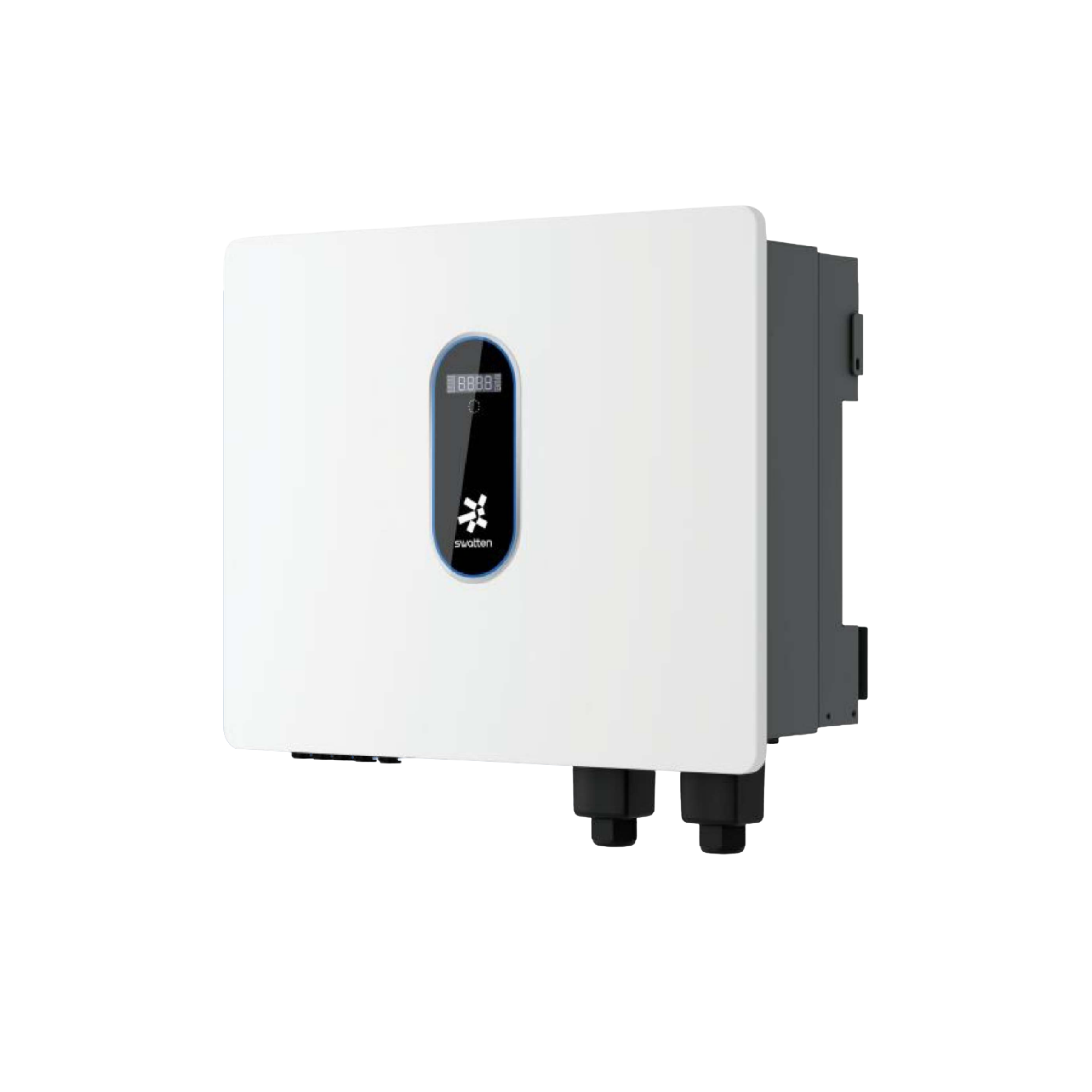

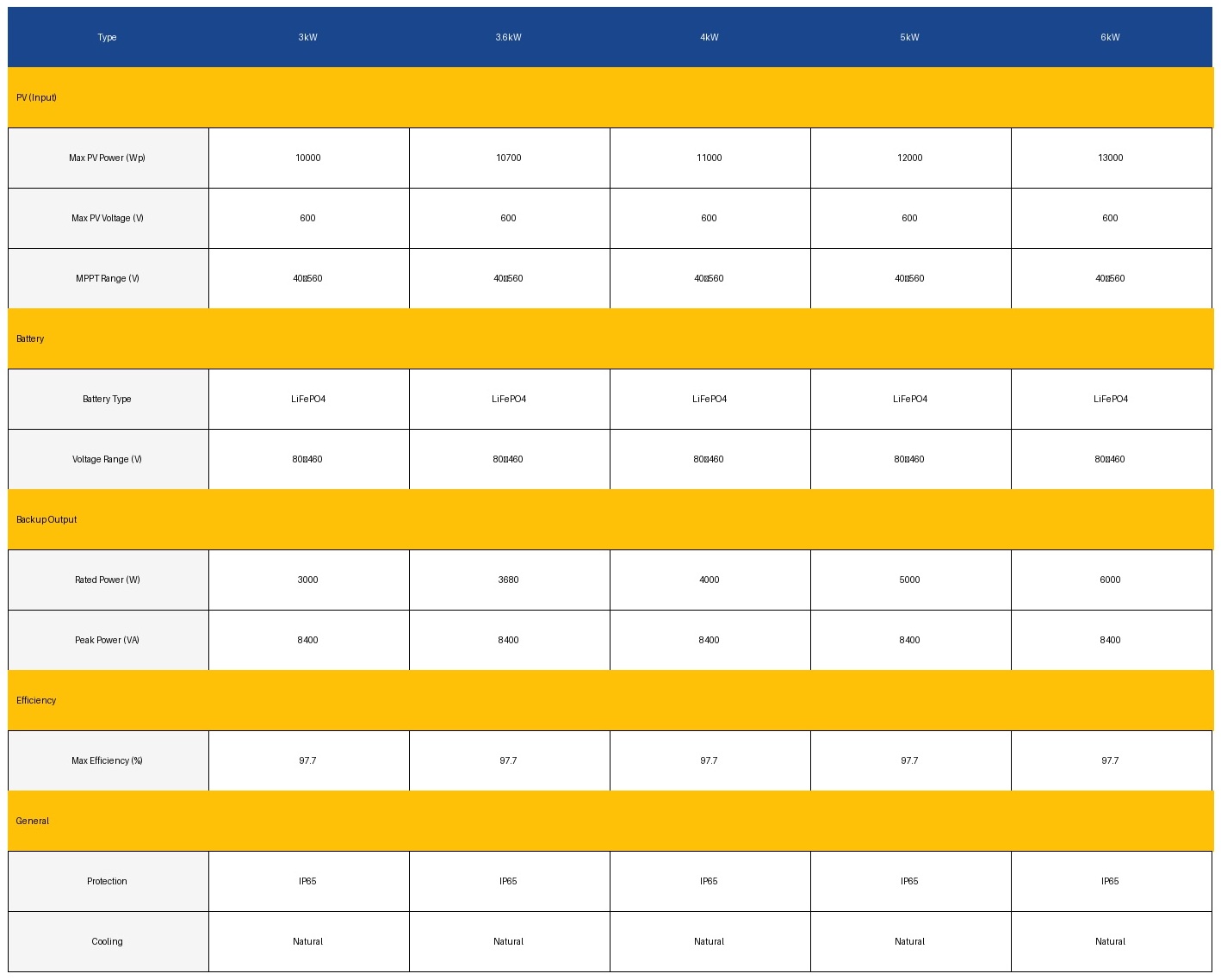

Single Phase Hybrid Inverter (HV) (3–6) kW
The Single Phase Hybrid Inverter (HV) (3–6kW) is a high-efficiency, transformerless solution designed for residential and small commercial solar systems. With up to 97.7% efficiency and support for high-voltage LiFePO₄ battery storage, it ensures maximum energy utilization and reliable performance. Featuring dual MPPT technology, up to 600V PV input, and seamless <10ms backup switching, it delivers stable power in both on-grid and off-grid modes. The IP65-rated enclosure, natural convection cooling, and advanced protection features make it durable, safe, and ideal for long-term solar installations.
View Full Specificationskw(1).png)

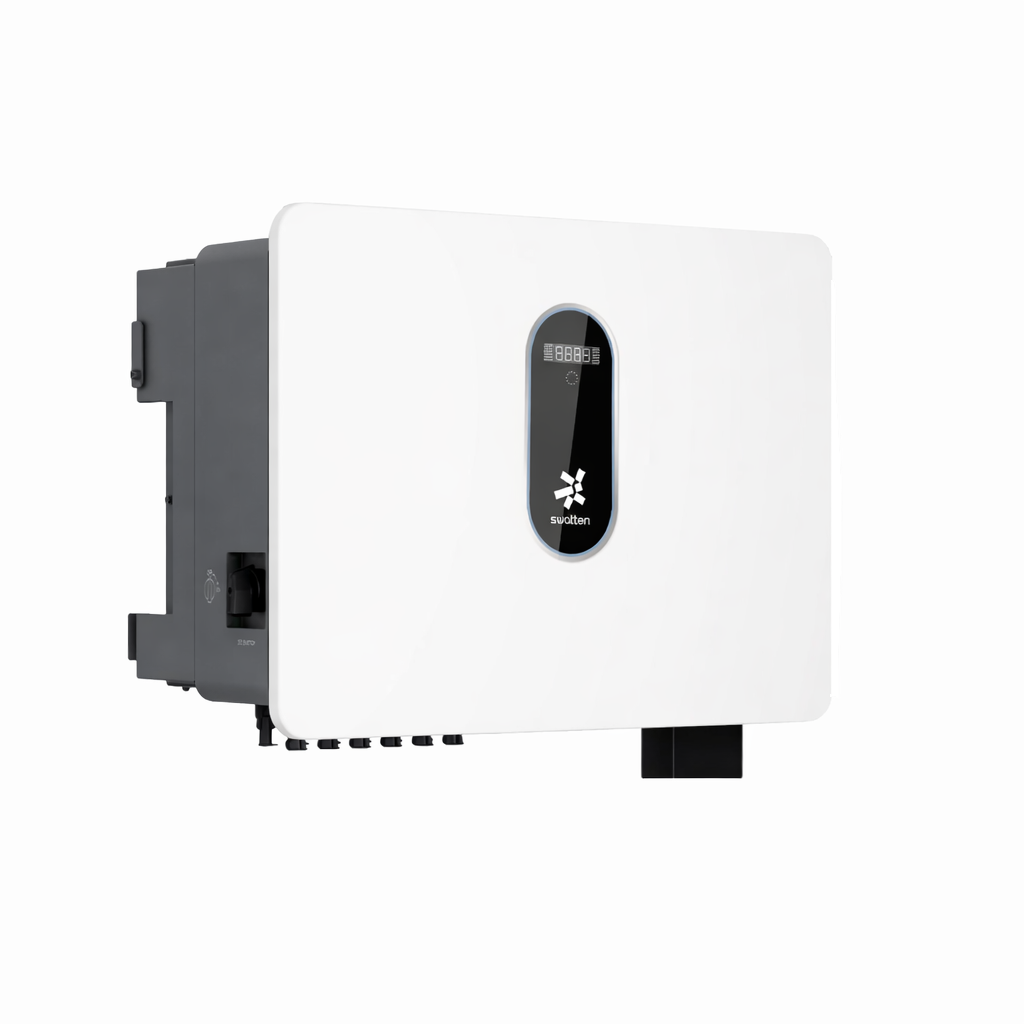

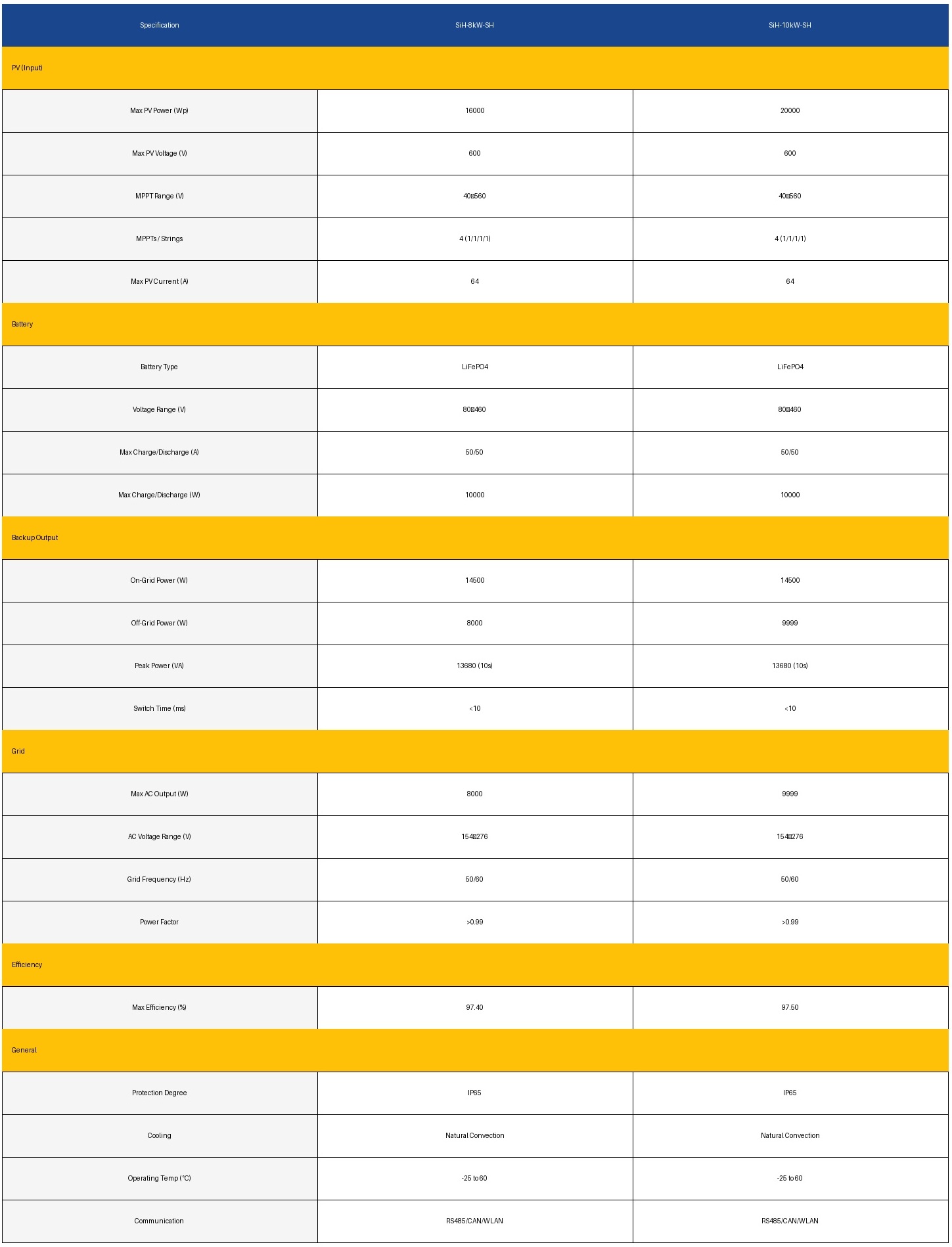

Single Phase Hybrid Inverter (HV) (8/10) kW
The Single Phase Hybrid Inverter (HV) (8/10) kW is a powerful and efficient solution designed for large residential and commercial solar systems. With up to 20kW PV input capacity, 4 MPPT trackers, and high-voltage LiFePO₄ battery compatibility, it ensures maximum energy harvesting and flexible system design. Delivering up to 97.5% efficiency, fast <10ms backup switching, and strong on-grid/off-grid performance, it provides reliable power even during outages. Built with an IP65-rated enclosure, natural convection cooling, and advanced protection features, this inverter guarantees durability, safety, and long-term performance. Ideal for high-demand installations, it combines high output capacity, smart monitoring (RS485/CAN/WLAN), and excellent grid compatibility in one advanced hybrid solution.
View Full Specifications (5-10) kW(1).png)

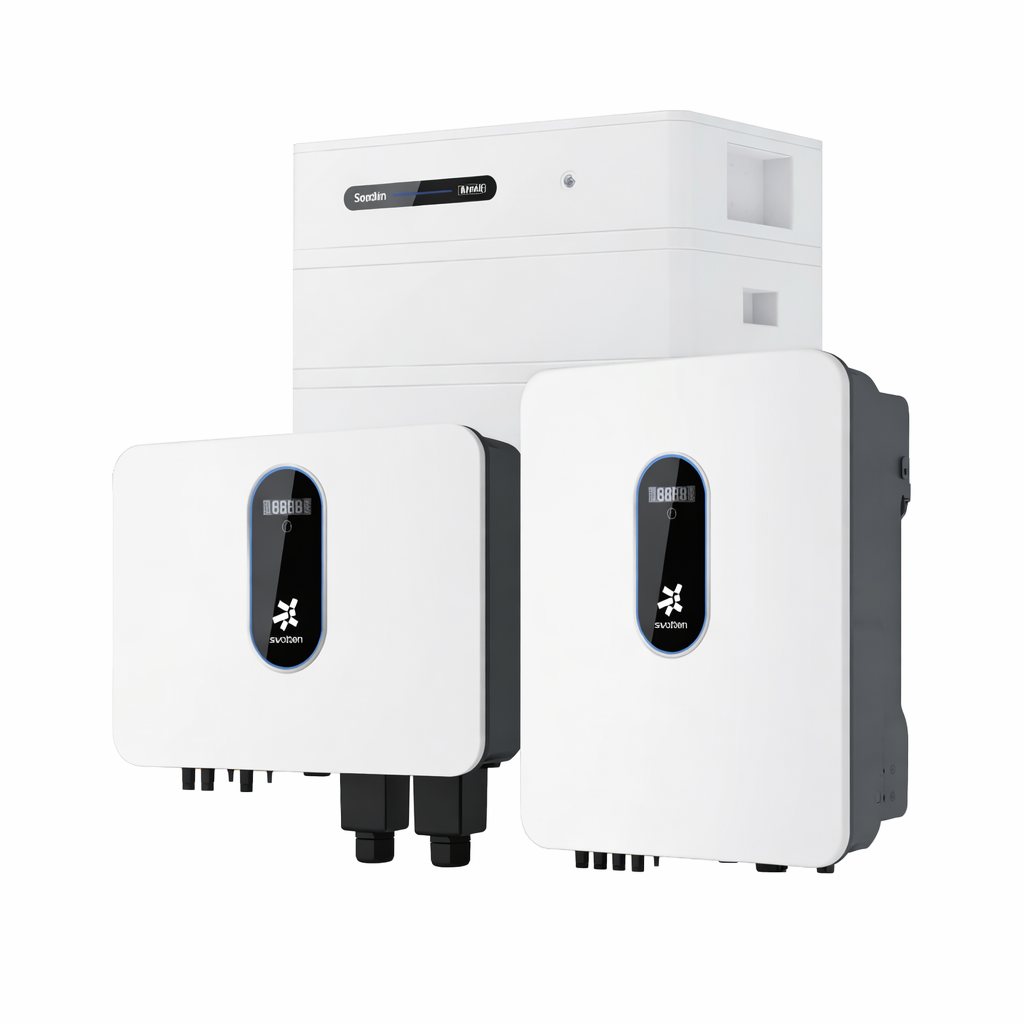

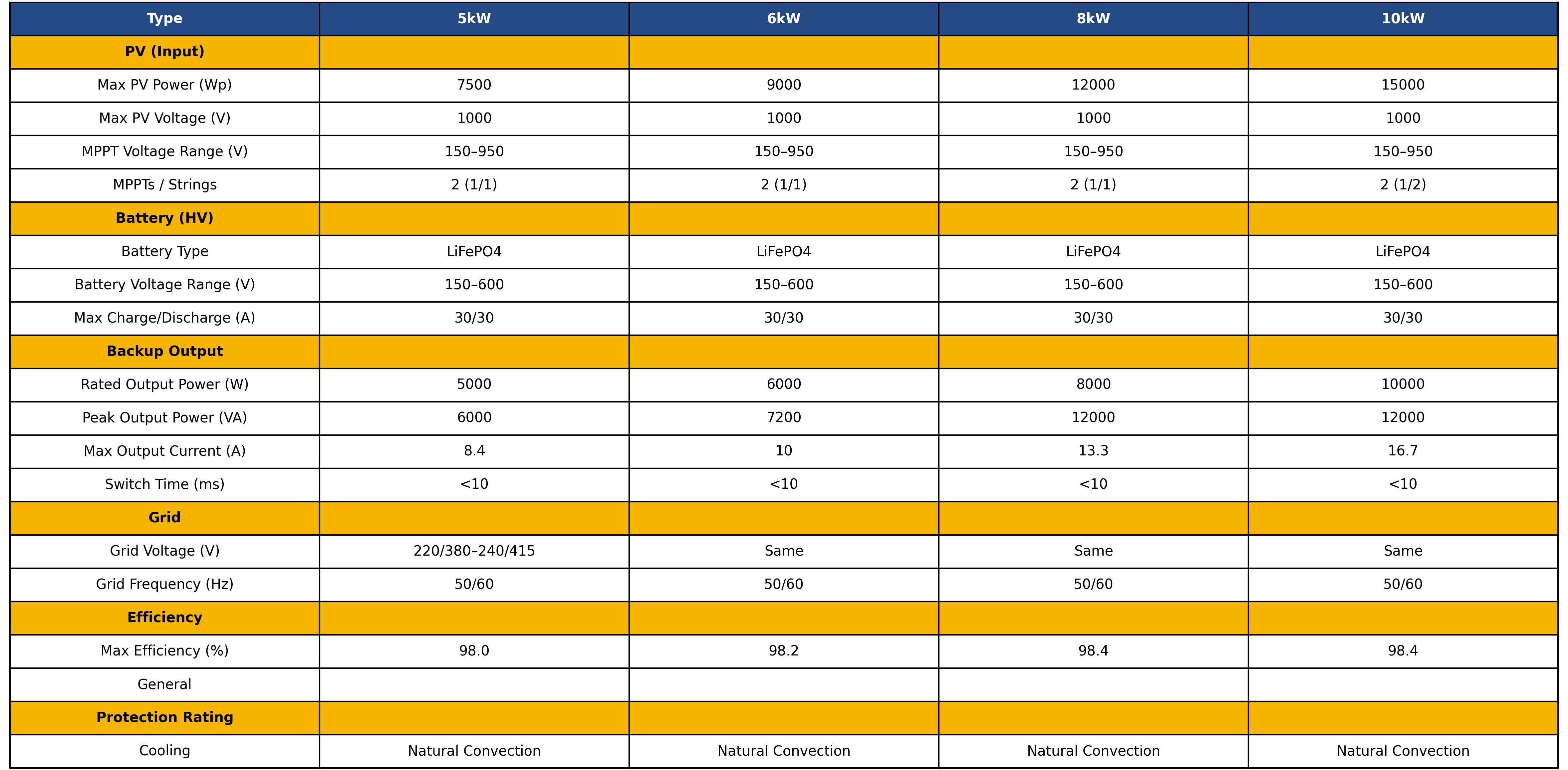

Three Phase Hybrid Inverter (HV) (5-10) kW
The Three Phase Hybrid Inverter (HV) 5–10kW series is engineered for high-performance residential and commercial solar systems requiring maximum efficiency, high-voltage battery integration, and reliable three-phase output. With up to 15kW PV input capacity and a wide 150–950V MPPT range, the system ensures optimal solar harvesting across multiple roof orientations. It supports high-voltage LiFePO₄ batteries (150–600V) for efficient storage and scalable energy independence. Designed for stable three-phase output (220/380V – 240/415V), the inverter delivers up to 10kW rated power, strong peak backup capability, and ultra-fast switching time (<10ms) for uninterrupted power during outages. Operating at up to 98.4% efficiency, with IP65 protection and natural convection cooling, this inverter provides durable, quiet, and dependable performance for indoor and outdoor installations.
View Full Specifications (10-20) kW(1).png)

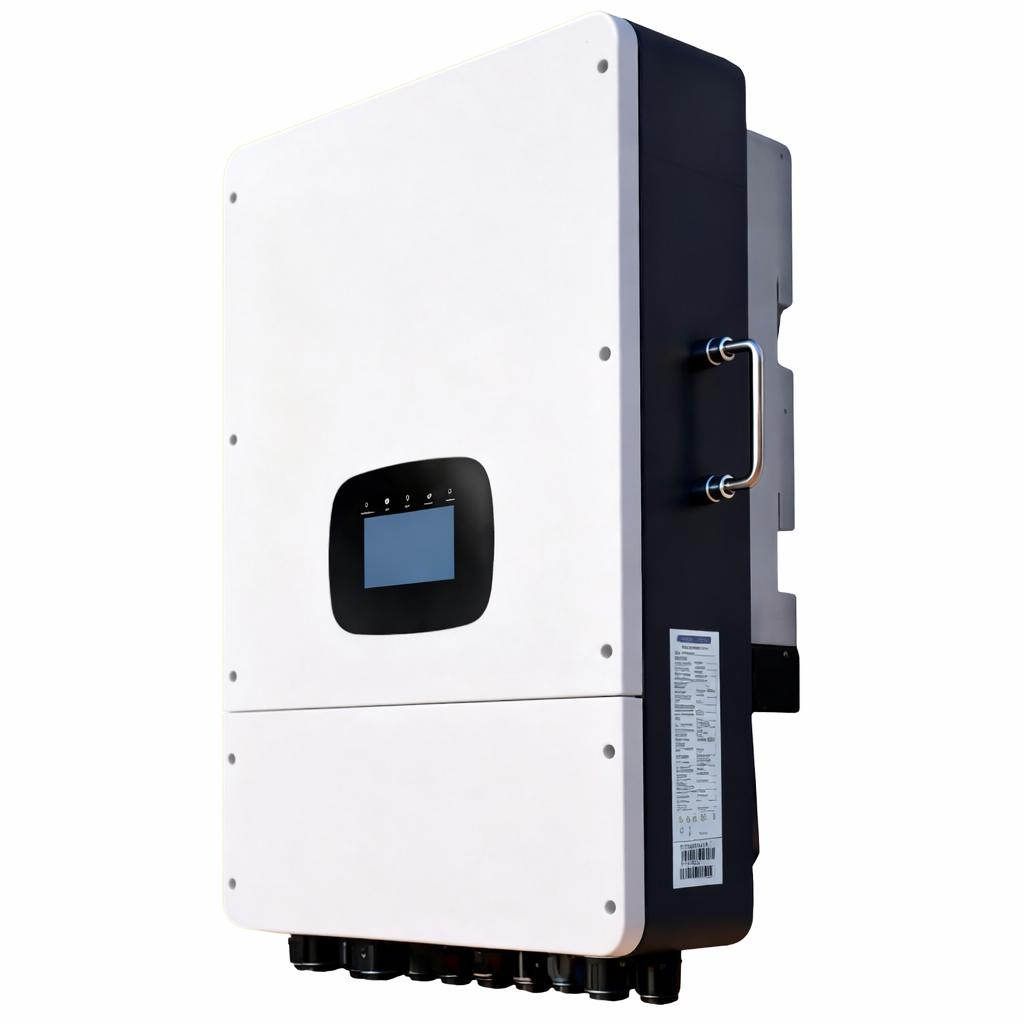

Three Phase Hybrid Inverter (HV) (10-20) kW
The 10–20 kW Three Phase Hybrid Inverter (HV) Series is a high-efficiency energy solution designed for commercial and large residential solar systems. With up to 3 MPPT trackers and a wide 150–950V MPPT range, it maximizes solar yield across complex installations. It supports high-voltage LiFePO₄ batteries (100–800V) for powerful, efficient energy storage. Delivering 10 kW, 15 kW, and 20 kW output options, the inverter ensures seamless three-phase power with ultra-fast ≤4ms backup switching — ideal for critical loads. Built with IP66 protection, natural convection cooling, and advanced safety protections, it offers durability, reliability, and long-term performance. Maximum efficiency reaches up to 98.1%, ensuring optimal energy conversion.
View Full Specifications
